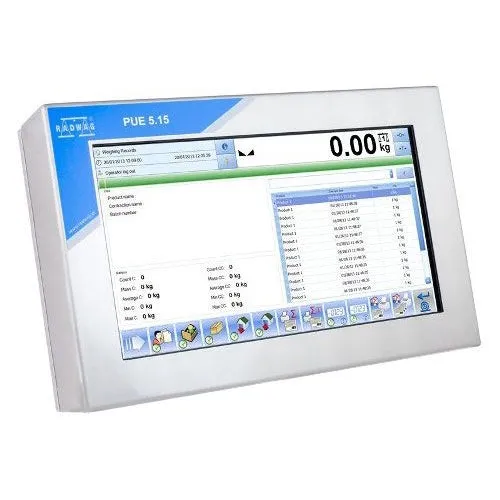

Radwag PUE 5.15IR/P weighing terminal with 15" IR touch screen, panel, WX-008-0041 . The terminals are intended to designing scales with maximum resolution of 6000 e. PUE 5 series, similarly to the basic model, are enclosed in a stainless steel housing which allows for reaching the highest IP rating, i.e. IP68. The terminals come standard with interfaces: 2 × RS232, 1 × RS485, 1 × Ethernet, 4 × USB 2.0. PUE 5 series can be extended by additional 3 weighing modules for simultaneous operation of maximum 4 weighing platforms. Optionally available PROFIBUS DP interface enables terminals cooperation with industrial ProfiBus network. Features and Benefits
Convenience and comfort of operation.
Functionality of an industrial computer.
Industrial applications of pue 5 indicator.
Uncomplicated application designing.
Multiplatform systems management.
Robustness and resistance to unfavorable ambient conditions.
Functions
Dosing: Weighing process for which reference mass has been determined together with tolerance for its determination. Dosing tolerance is given in [%] and it is calculated in relation to the reference value thus being a permissible deviation of this process. This solution is used for weighing powders, liquids and loose materials. Dosing function performance is often supported with bargraph - load indicator. For industrial scales it is possible to use a control systems of dosing process.
Labeling: Marking products with the right symbols contributes to quick and reliable identification. The balance/scale usually transfers product mass or product quantity to the label printer. The transferred value is printed with the following information: bar code, pictogram, content, address etc. In laboratory the labeling is performed in a semi-automatic mode, for industry in an automatic one (dynamic scales).
Plus/Minus Control: Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualization of weighing result is displayed in a form of a bar graph.
Parts Counting: Function using mass measurement for determination of measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass/single item mass = quantity. Function operation is supported by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with Checkweighing and dosing thus industry solutions feature audio signaling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platforms of different MAX capacities and different accuracies.
Formulation: Function supporting the mixture making process, wherein the mixture contains various components. Formulation function usually uses the balance/scale database of components. Formulation serves for monitored Checkweighing of every single component with a given tolerance. It is enriched with a set of individual settings.
Statistics: Statistics function registers and analyses performed measurements. This supplies the user with the following information: Max and Min standard deviation, average value, variance, range etc.
Check Weighing: Checkweighing function is used for checking whether the measured sample mass is within the predefined threshold values, Low [LO] and High [HI]. The thresholds are given in [g] and [kg] units. Current state of a sample being measured is signaled by means of pictograms located on a display for laboratory balances, for industrial scales Stack light System is used. This visual /- inspection is in operation during segregation, control or packing process of products for which mass has bees determined with a specifaied tolerance.
